| Item | Contents | Specification |
|---|---|---|
| IPC | System | X-Worker Flexible Control System |
| Compatible Controller | brother, FANUC, SIEMENS, MITSUBISHI, HEIDENHAIN, SYNTEC, GSK and HNC etc. | |
| Robot | Type | XTEC specified Robot (FANUC Robot as an option) |
| Maximum Loading | 20Kg | |
| Reach | Approx. 1717mm | |
| Repeatability | ±0.05mm | |
| Gripper | Single or Combined | |
| Parameter | Capacity | Depending on workpiece dimension |
Max. weight of workpiece | 16kg*1 | |
| Max. height of workpiece | 190mm*2 | |
Rack | Rack Typed | Conveyor Typed |

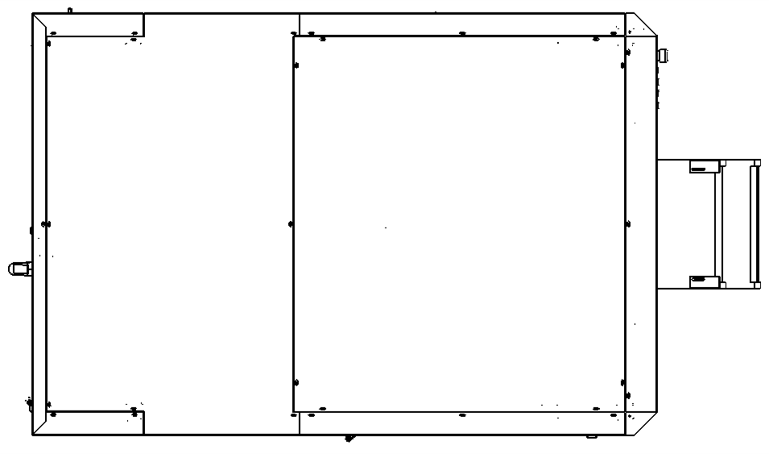

Size | Dimension(L*W*H) | Approx. 2550mmΧ1450mmX2130mm |
| Safety | Metal cover | Metal cover |
| Safety fence | / | |
| Radar Sensor | / |
| Voltage | 220V AC +10% to -10% ,3-Phase or 220V AC, 1-Phase 50/60±1Hz |
| Power | 6.5kVA |
| Air Pressure | ≥0.6MPA |
| Net Weight | Approx. 1000kg |
*1 Maximum weight of the workpiece may change when use different
gripper.
*2 Maximum height of workpiece may change depending on the actual
situation.
