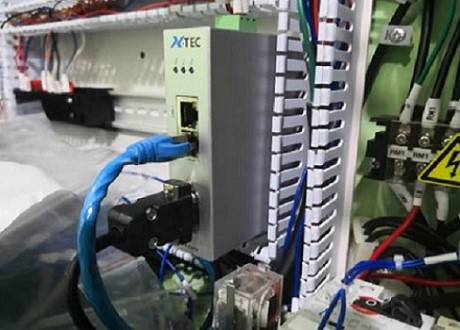

X-PLUTO A SeriesCNC machine additional axis control

Features

Regardless of the NC system, multiple additional axes can be controlled independently and simultaneously Indexing.
Control additional axes with G-code in the NC program.
Maximum number of control axes: 4 additional axes.
Compatible System: SIEMENS, FANUC, MITSUBISHI, brother, etc.

Advantage

No need to activate additional axes control option.
Fast exchange of turntables and fixtures between machines.
Simple operation, no extra programming required.
Support online screw compensation and backlash compensation.
Touchscreen as standard for easy manual tune-up.

详细咨询

Additional axis control ways Comparison Application Illustration

Additional axis control ways Comparison

	NC Mode		X-PLUTO Mode		External Controller Mode
Control mode	NC System	◎	X-PLUTO	○	External controller	△
Controls the number of axes	1-axis, 2-axis (special)	△	Max 4 axes	◎	Max 2 axes	○
NC Programming	Standard G\M code	◎	Standard G\M code	◎	External program	×
Action Mode	Simultaneously	◎	Multiple axes indexing	○	single axis indexing	×
Display way	NC Screen	◎	External touch screen	○	External controller screen	×
Compatibility	Negative	×	Positive	◎	Positive	○
Motors and amplifiers	Pair with NC system	×	Panasonic	◎	Manufacturer -specified	△
Interchangeability	Negative	×	Easy	◎	Easy	◎
Convenience operation	Easy	◎	Easy	◎	Hard	×
Cost	Average	△	Low	◎	High	×
